Verhoef Aluminium Freefall Lifeboats
designed and manufactured according latest LSA/SOLAS and DNV-OS-E406
|
Type |
Length |
Width |
Capacity Range as per DNV |
Empty Boat weight* |
Loaded boat weight |
Drop height from bow |
Launching |
Equipment weight FFLB & Cradle system |
|
FL50-NS |
11.25 m. |
3.50 m. |
32 |
9.200 kg |
12.400 kg |
30 m. |
10.000 kg |
19.360 kg |
|
FL50-NS-EP |
11.25 m. |
3.40 m. |
32 |
9.360 kg |
10.680 kg |
30 m. |
10.000 kg |
19.360 kg |
Specifications and data may change without prior notice, due to continuous product development and research.
Note: loaded boat weight with max number of persons – 100 kgs each – seat dimensions per DNV.
In compliance with with Norwegian Standard DNV-ST-E406.
If required, designs can be adapted to Clients Requirements. Verhoef can also deliver ‘Retrofits’, which means that new FFLB’s, as per latest Authority requirements, can be mounted into existing cradles.
Products and options
Electric Powered Freefall Lifeboat
History
Launching appliancesdesigned, manufactured and tested in-house
Materials
Seat testingwith 5-point harness as required by DNV-OS-E406
Drop Test Facility
Boardingtests

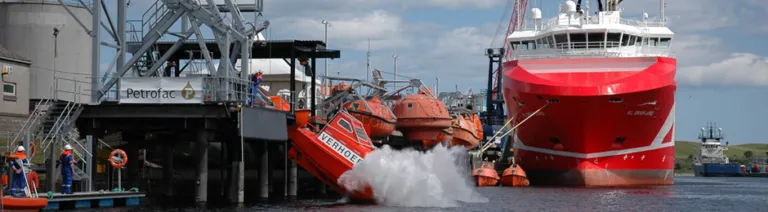

Training Facility

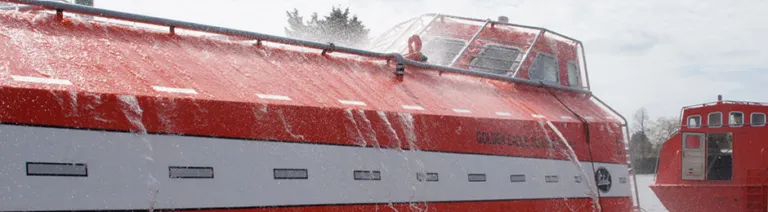

Fire Test

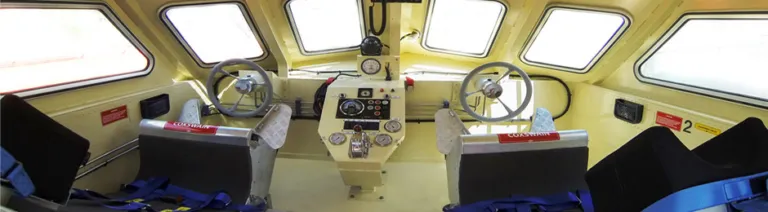

Wheelhouse
